Module options

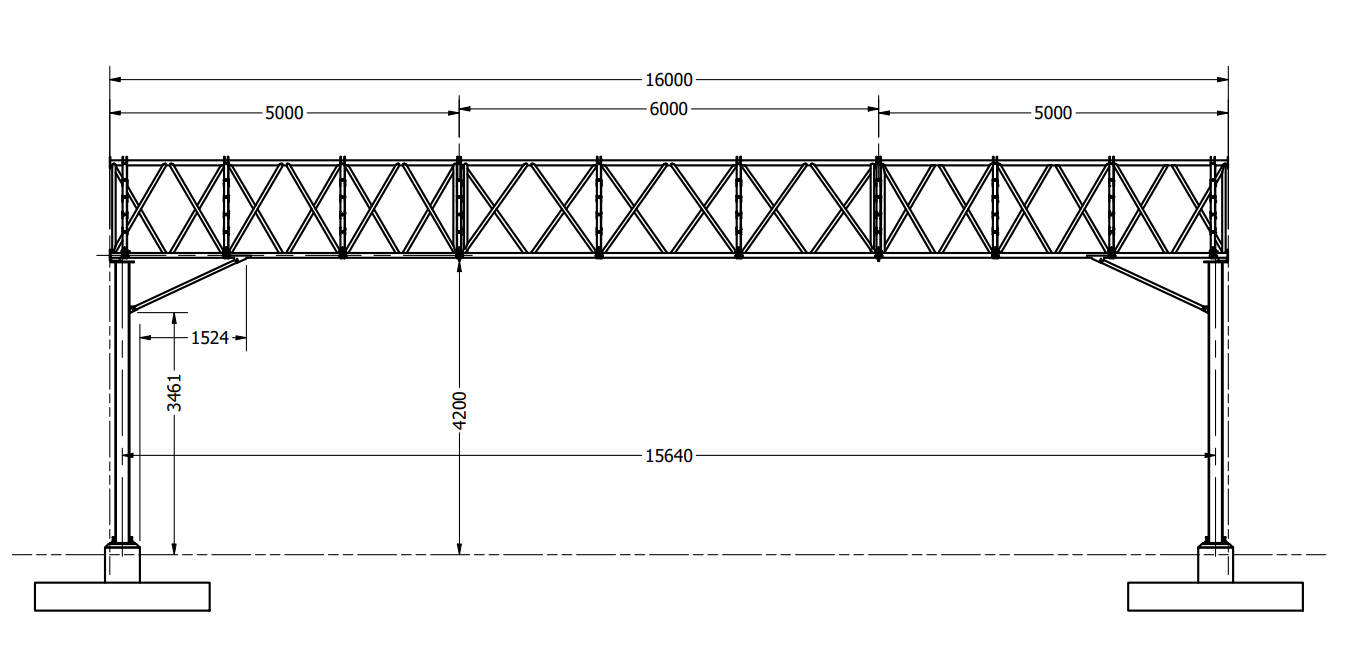

Option 1: 16 x 11,5 metres (4,2 or 2,2 metre clearance height)
- 16 11,5 x m
- 90 (1762 x 1134) mm panels
- 180 m2
- 39,6 kW
- 220 W / m2

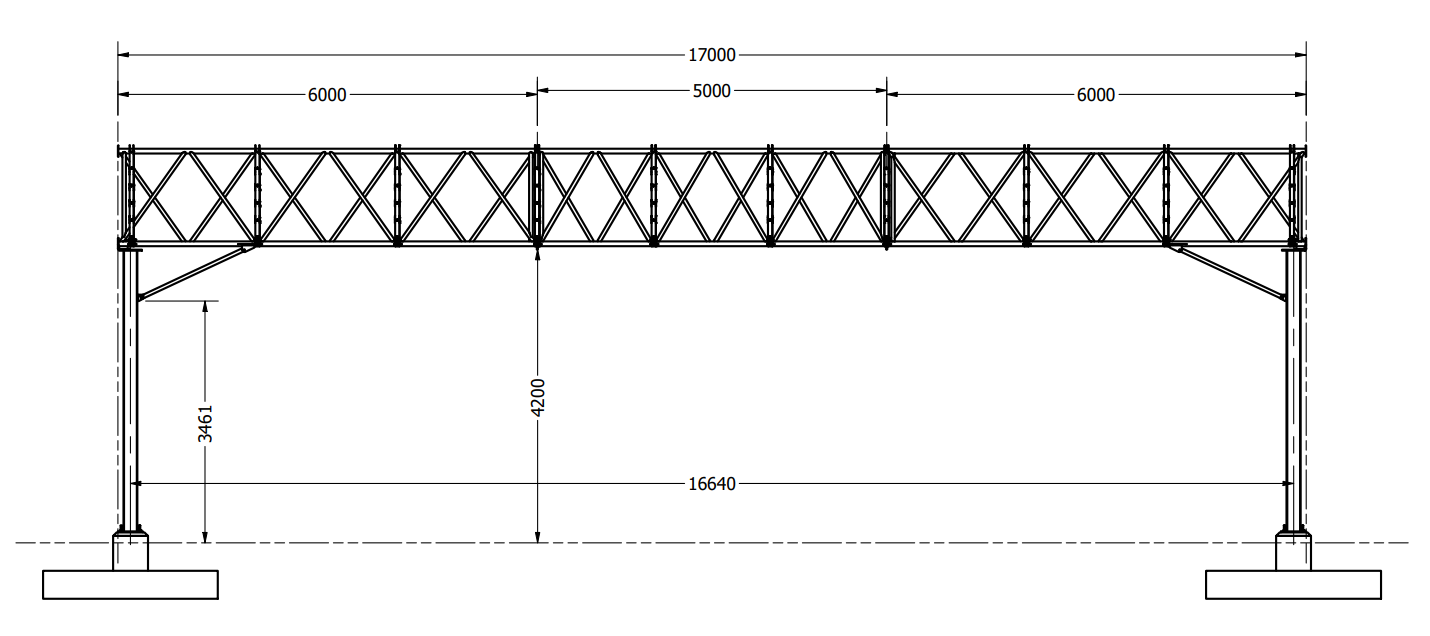

Option 2: 17 x 11,5 meters (4,2 or 2,2 meter (headroom)
- 17 11,5 x m
- 80 (2094 x 1134) mm panels
- 189,6 m2
- 40,8 kW
- 215 W / m2
Module options

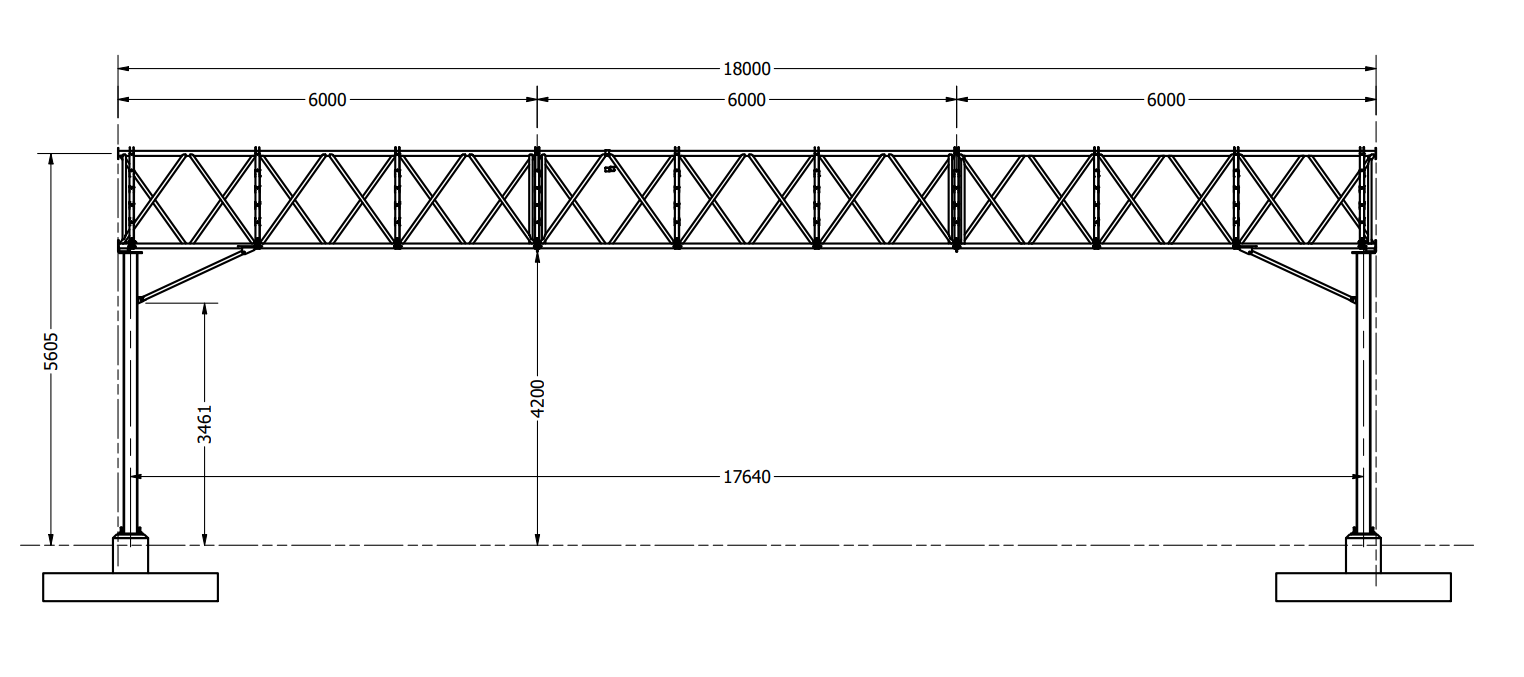

Option 3: 18 x 11,5 meters (4,2 or 2,2 meter (headroom)
- 18 11,5 x m
- 90 (1961 x 1134) mm panels
- 199,8 m2
- 45 kW
- 215 W / m2
A laying plan for your project in 4 steps
Choose your project location, roof type and solar panels
Determine where you want to install, select the roof type and choose the right solar panels.
Draw in the roof and any obstacles
Indicate the shape of the roof and draw any obstacles such as chimneys or skylights.
Place the panels where you want them
Drag the solar panels to the ideal position on the roof.
Download the report with the parts list and design
Receive an immediate overview of all required materials and a clear design plan.
Need help with your design? Make an appointment with our support.
Your custom project
Would you like to explore how your project will take shape with the RABLE10Carpark?
By contacting us we will arrange a conceptual layout with quotation. Press the button below to get in touch and we will get back to you within 24 hours!
